Compact continuous MSDBD source for laboratory automation and OEM integration.

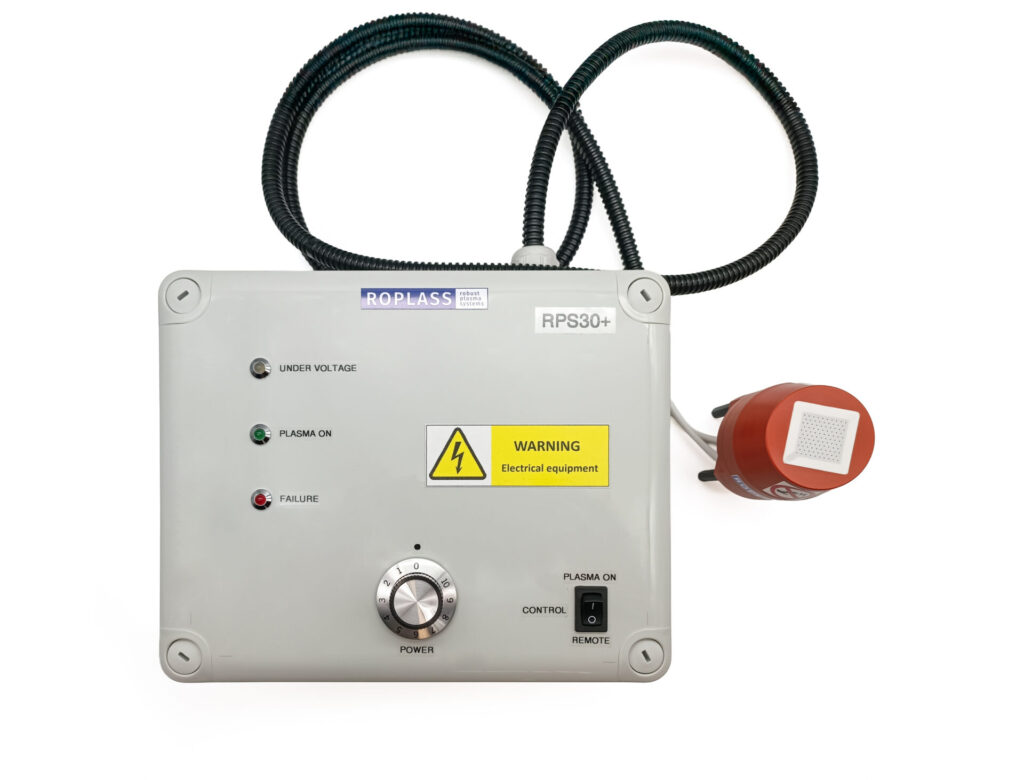

The RPS30+ is a medium-power MSDBD atmospheric plasma source with separated plasma head and unlimited continuous operation, designed for extended laboratory research and integration into automated processes on thermally sensitive substrates. It uses the same MSDBD unit as the RPS30 but adds separated head geometry and 24/7 uptime.
The RPS30+ model stands out with its separated plasma unit from the voltage source, allowing seamless integration into various processes. Additionally, it is designed for unlimited operation time, ensuring continuous and reliable performance.
The MSDBD unit features an array of 105 hollow-surface dielectric barrier discharges within precisely structured holes. The working gas flowing through these holes ensures efficient operation at distances of up to 5 mm.
Main features
- Power: 230 VAC / 19 VDC
- Plasma parameters: 30 W (7 kV, 20 kHz)
- Plasma area: 18 mm × 18 mm, 105 holes,
diameter 0.8 mm, in robust alumina ceramics - Gas: open-air, synthetic air, nitrogen, oxygen, CO2 / compressed gases on request
- Plasma operation unlimited
Applications
- Patterned surfaces
- Fine treatment of biological materials
- Generation of ozone
- Plasma in aerosols
